08607/16
08607/16
08607/16

08607/16

UGC PRE6000134
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.96 CAD - $35.96 CAD
$35.96 CAD
$35.96 CAD - $35.96 CAD
$35.96 CAD

Vendu en lots de : 1

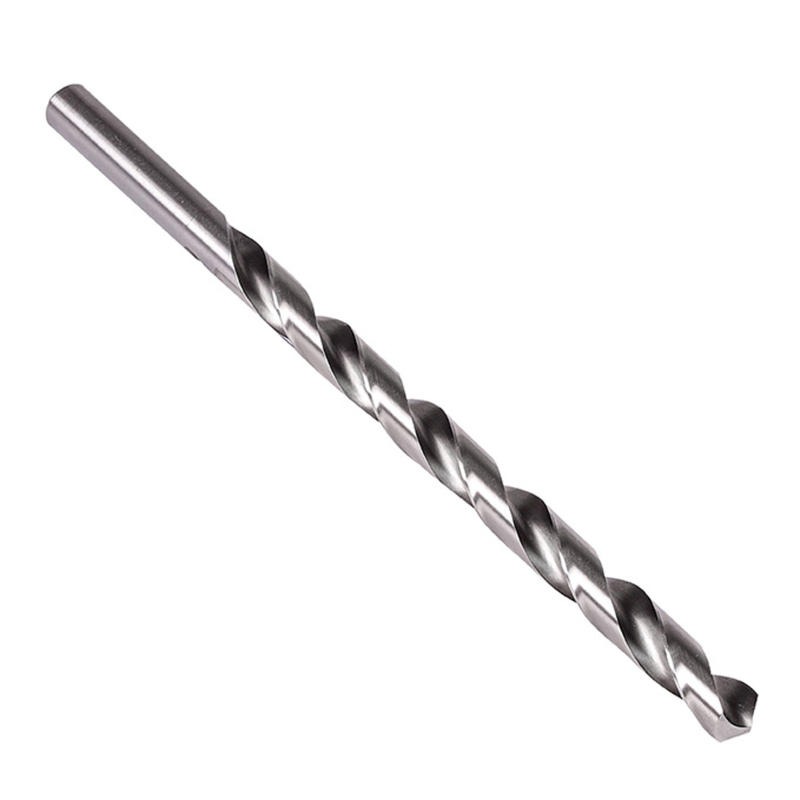

Foret extra-long à queue cylindrique, diamètre 0,4375" (7/16) avec une longueur totale de 8" et une longueur de goujure de 6" selon la norme ANSI, avec angle de pointe de 118°, HSS finition brillante pour perçage 12xD avec débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)08607/16
GradeLumineux
Product Number6000134
Product Family0860
Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Flute Length — in (LCF)6.0"
Flute Length — mm (LCF)152.4 mm
Length × Diameter Ratio12
Connection Dia. — in (DCON)0.4375"
Connection Dia. — mm (DCON)11.11 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number57428
File Type Download
08607/16 — 3D Model STP Download
08607/16 — Line Drawing PDF Download
