R581.9/16
R581.9/16

R581.9/16

UGC PRE6000138
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$243.00 CAD - $243.00 CAD
$243.00 CAD
$243.00 CAD - $243.00 CAD
$243.00 CAD

Vendu en lots de : 1

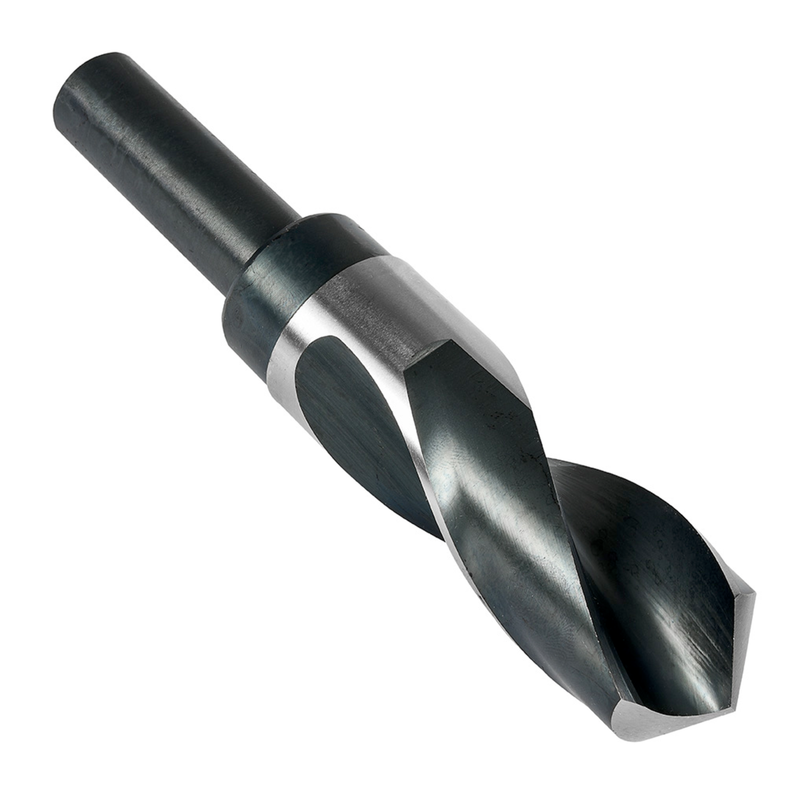

Foret hél. courte avec queue cylindrique réduite 3/4", diamètre 1,5625" (1.9/16) avec une longueur totale de 6" et une longueur de goujure de 3" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante + revenu vapeur pour le perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R581.9/16
GradeLumineux/CT
Product Number6000138
Product FamilyR58

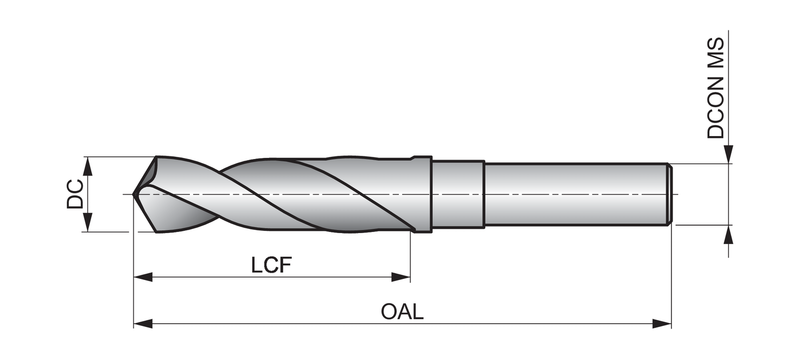

Dimensions
Cutting Diameter — in (DC)1.5625"
Cutting Diameter — mm (DC)39.69 mm
Cutting Diameter — Fractional1.9/16
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91298
File Type Download
R581.9/16 — 3D Model STP Download
R581.9/16 — Line Drawing PDF Download
