R581.9/32
R581.9/32

R581.9/32

UGC PRE6000143
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.47 CAD - $165.47 CAD
$165.47 CAD
$165.47 CAD - $165.47 CAD
$165.47 CAD

Vendu en lots de : 1

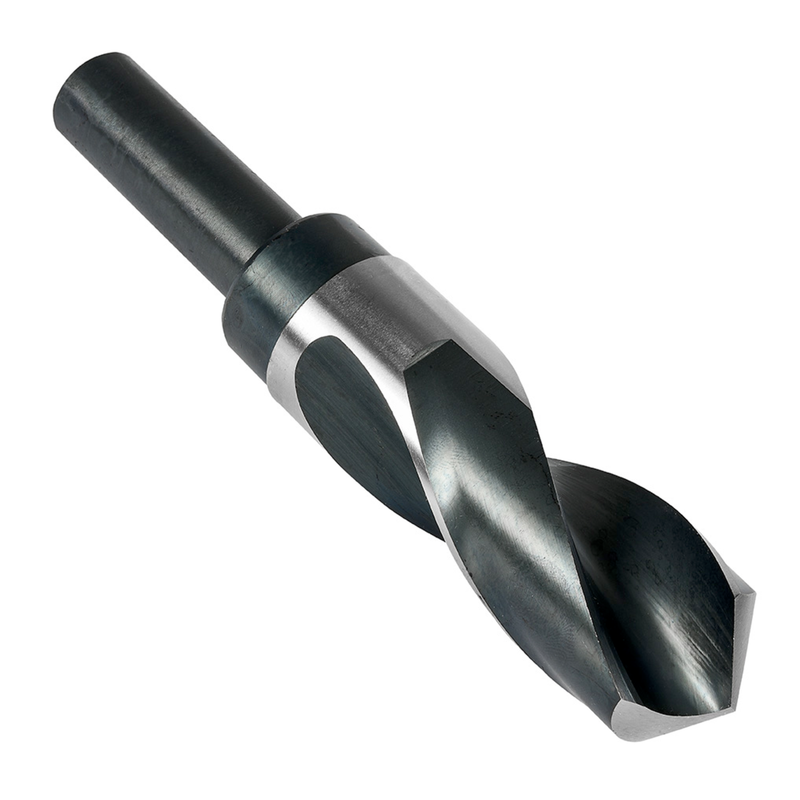

Foret hél. courte à queue cylindrique réduite 3/4", diamètre 1.2813" (1.9/32), longueur totale 6", longueur de coupe 3" selon norme ANSI, angle de pointe 118°, en HSS, finition polie + trempe vapeur pour perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R581.9/32
GradeLumineux/Courant fort
Product Number6000143
Product FamilyR58

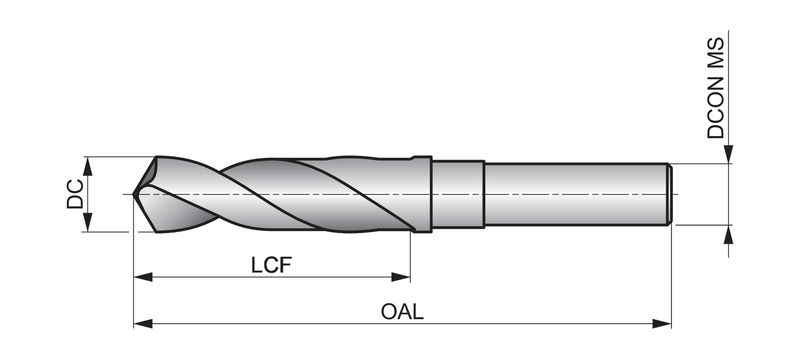

Dimensions
Cutting Diameter — in (DC)1.2813"
Cutting Diameter — mm (DC)32.55 mm
Cutting Diameter — Fractional1,9/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number91282
File Type Download
R581.9/32 — 3D Model STP Download
R581.9/32 — Line Drawing PDF Download
