R88CO1/2
R88CO1/2

R88CO1/2

UGC PRE6000155
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.94 CAD - $32.94 CAD
$32.94 CAD
$32.94 CAD - $32.94 CAD
$32.94 CAD

Vendu en lots de : 6

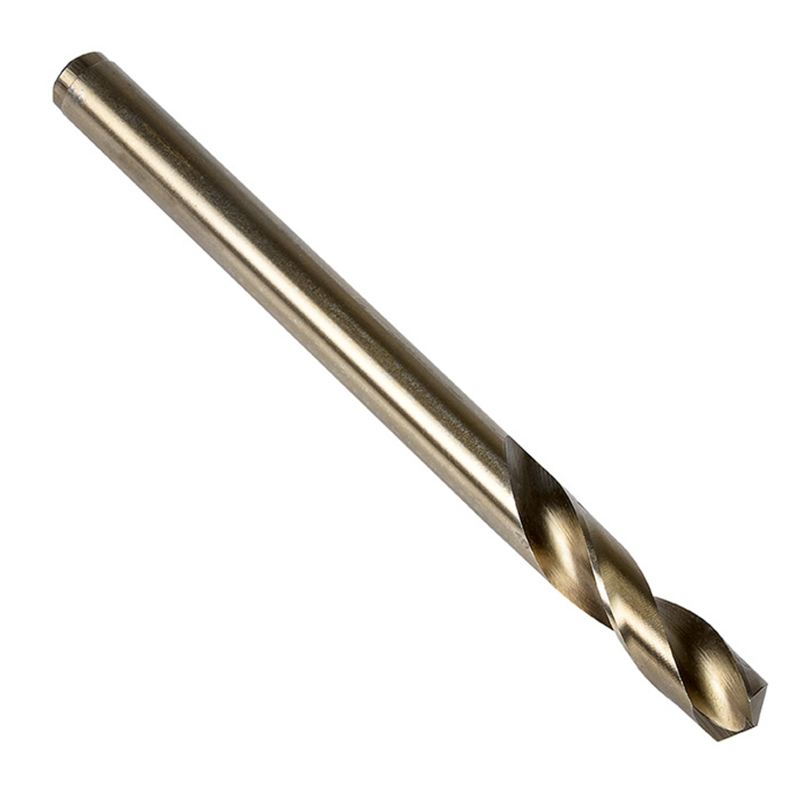

Foret court avec queue cylindrique, diamètre 0,5000" (1/2) avec une longueur totale de 6" et une longueur de coupe de 2,1/4" selon la norme NAS907 Type D avec une pointe auto-centrante robuste à 135°, en HSS-E cobalté avec finition bronze pour le perçage à 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R88CO1/2
GradeBronze
Product Number6000155
Product FamilyR88CO

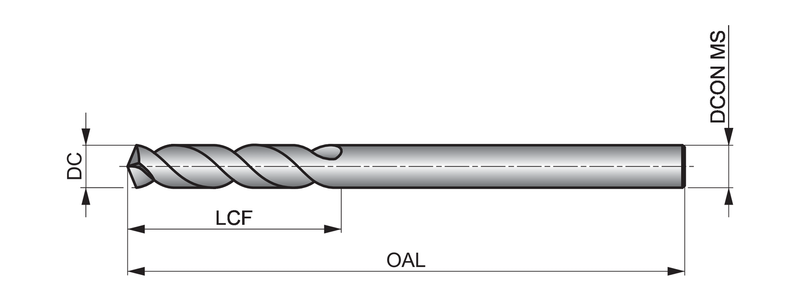

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)2.25"
Flute Length — mm (LCF)57.15 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number58732
File Type Download
R88CO1/2 — 3D Model STP Download
R88CO1/2 — Line Drawing PDF Download
