129021/64

129021/64

UGC PRE6000224
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.47 CAD - $42.47 CAD
$42.47 CAD
$42.47 CAD - $42.47 CAD
$42.47 CAD

Vendu en lots de : 1

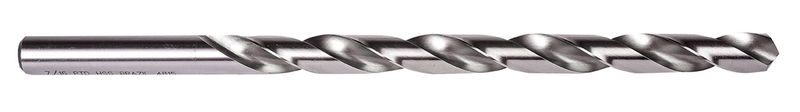

Foret extra-long à queue cylindrique, diamètre 0,3281" (21/64) avec une longueur totale de 12" et une longueur de coupe de 9" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition brillante pour le perçage 12xD avec débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)129021/64
GradeLumineux
Product Number6000224
Dimensions
Cutting Diameter — in (DC)0.3281"
Cutting Diameter — mm (DC)8.33 mm
Cutting Diameter — Fractional21/64
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)9.0"
Flute Length — mm (LCF)228.6 mm
Connection Dia. — in (DCON)0.3281"
Connection Dia. — mm (DCON)8.33 mm
Tool Information
StandardANSI
Reference Numbers
EDP Number59621
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
129021/64 — 3D Model STP Download
129021/64 — Line Drawing PDF Download
