R515/64
R515/64
R515/64

R515/64

UGC PRE6000231
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.26 CAD - $5.26 CAD
$5.26 CAD
$5.26 CAD - $5.26 CAD
$5.26 CAD

Vendu en lots de : 12

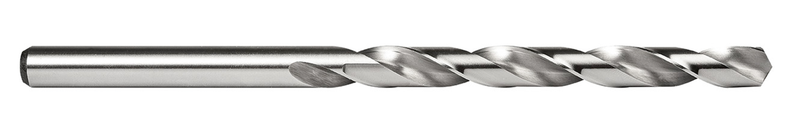

Foret série longue à queue droite, diamètre 0,0781" (5/64) avec une longueur totale de 3,3/4" et une longueur de coupe de 2" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition brillante pour perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R515/64
GradeLumineux
Product Number6000231
Product FamilyR51
Dimensions
Cutting Diameter — in (DC)0.0781"
Cutting Diameter — mm (DC)1.98 mm
Cutting Diameter — Fractional5/64
Overall Length — in (OAL)3.75"
Overall Length — mm (OAL)95.25 mm
Flute Length — in (LCF)2.0"
Flute Length — mm (LCF)50.8 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.0781"
Connection Dia. — mm (DCON)1.98 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51005
File Type Download
R515/64 — 3D Model STP Download
R515/64 — Line Drawing PDF Download
