R5159/64
R5159/64
R5159/64

R5159/64

UGC PRE6000251
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$119.31 CAD - $119.31 CAD
$119.31 CAD
$119.31 CAD - $119.31 CAD
$119.31 CAD

Vendu en lots de : 1

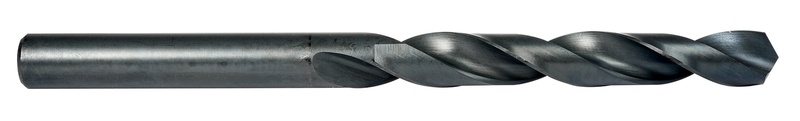

Foret série longue, à queue cylindrique, diamètre 0,9219" (59/64) avec une longueur totale de 10,3/4" et une longueur de coupe de 6,1/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour un perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5159/64
GradeTrempé à la vapeur
Product Number6000251
Product FamilyR51
Dimensions
Cutting Diameter — in (DC)0.9219"
Cutting Diameter — mm (DC)23.42 mm
Cutting Diameter — Fractional59/64
Overall Length — in (OAL)10.75"
Overall Length — mm (OAL)273.05 mm
Flute Length — in (LCF)6.125"
Flute Length — mm (LCF)155.58 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.9219"
Connection Dia. — mm (DCON)23.42 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51059
File Type Download
R5159/64 — 3D Model STP Download
R5159/64 — Line Drawing PDF Download
