R5163/64
R5163/64
R5163/64

R5163/64

UGC PRE6000255
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$137.13 CAD - $137.13 CAD
$137.13 CAD
$137.13 CAD - $137.13 CAD
$137.13 CAD

Vendu en lots de : 1

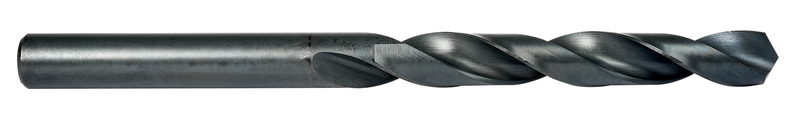

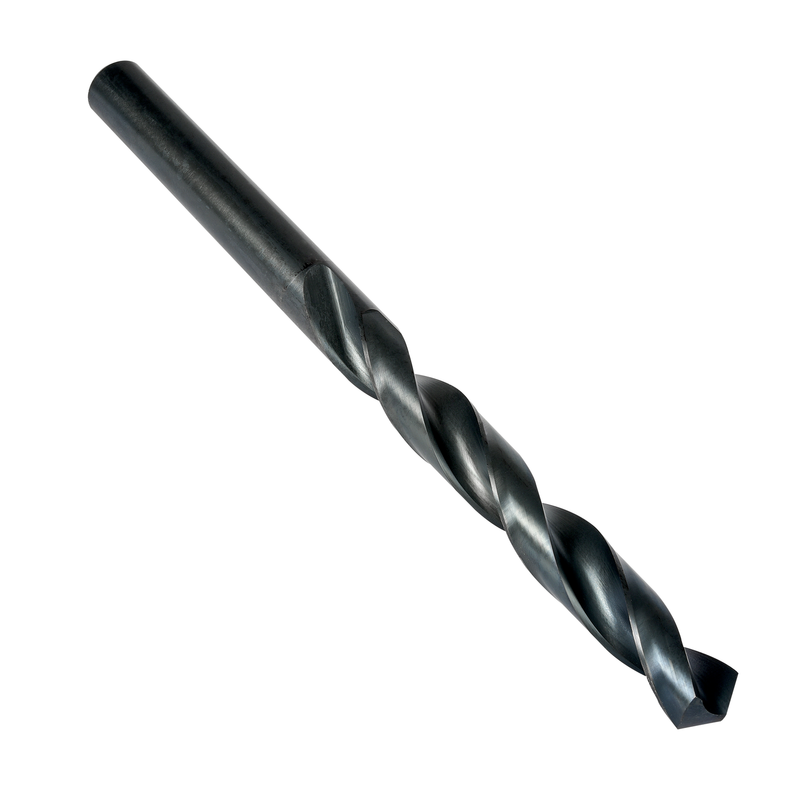

Foret série longue à queue cylindrique, diamètre 0,9844" (63/64) avec une longueur totale de 11" et une longueur de coupe de 6,3/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée vapeur pour le perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5163/64
GradeTrempé vapeur
Product Number6000255
Product FamilyR51

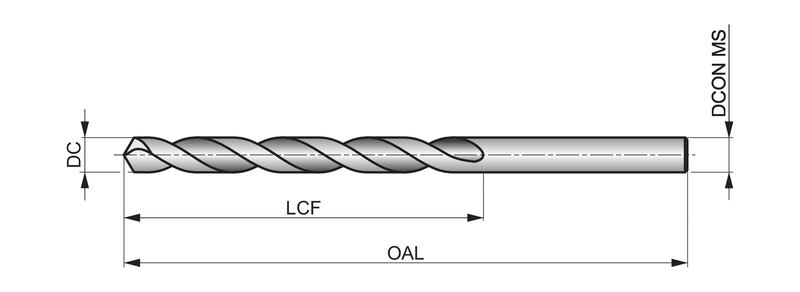

Dimensions
Cutting Diameter — in (DC)0.9844"
Cutting Diameter — mm (DC)25.0 mm
Cutting Diameter — Fractional63/64
Overall Length — in (OAL)11.0"
Overall Length — mm (OAL)279.4 mm
Flute Length — in (LCF)6.375"
Flute Length — mm (LCF)161.93 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.9844"
Connection Dia. — mm (DCON)25.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51063
File Type Download
R5163/64 — 3D Model STP Download
R5163/64 — Line Drawing PDF Download
