18137/16
18137/16
18137/16

18137/16

UGC PRE6000281
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$90.79 CAD - $90.79 CAD
$90.79 CAD
$90.79 CAD - $90.79 CAD
$90.79 CAD

Vendu en lots de : 1

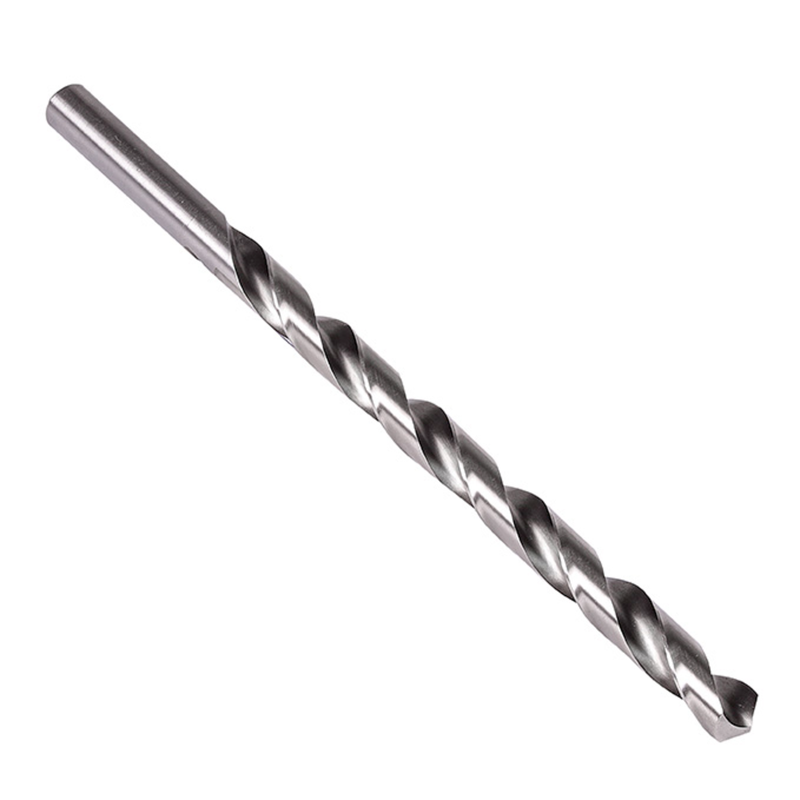

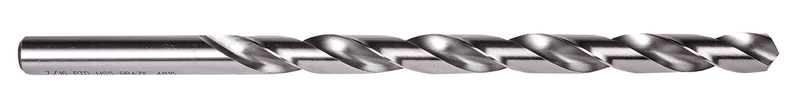

Foret extra-long à queue cylindrique, diamètre 0,4375" (7/16) avec une longueur totale de 18" et une longueur de coupe de 13" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition revenu vapeur pour le perçage de 15xD avec débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)18137/16
GradeLumineux
Product Number6000281
Product Family1813
Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)18.0"
Overall Length — mm (OAL)457.2 mm
Flute Length — in (LCF)13.0"
Flute Length — mm (LCF)330.2 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.4375"
Connection Dia. — mm (DCON)11.11 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number59728
File Type Download
18137/16 — 3D Model STP Download
18137/16 — Line Drawing PDF Download
