18139/32
18139/32
18139/32

18139/32

UGC PRE6000288
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.84 CAD - $74.84 CAD
$74.84 CAD
$74.84 CAD - $74.84 CAD
$74.84 CAD

Vendu en lots de : 1

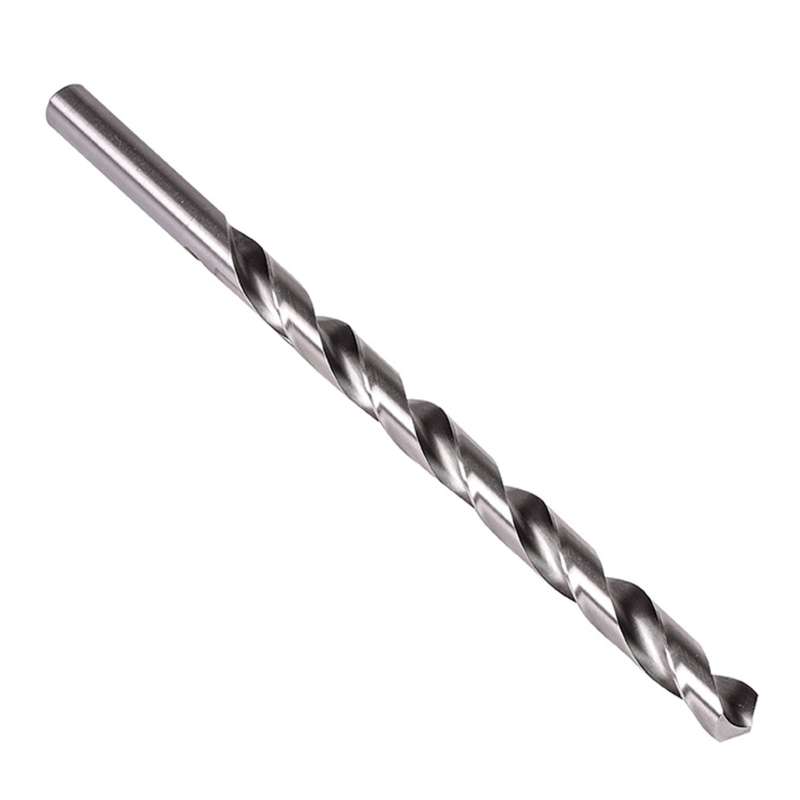

Foret extra-long à queue cylindrique, diamètre 0,2813" (9/32) avec une longueur totale de 18" et une longueur de coupe de 13" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 15xD avec débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)18139/32
GradeLumineux
Product Number6000288
Product Family1813
Dimensions
Cutting Diameter — in (DC)0.2813"
Cutting Diameter — mm (DC)7.15 mm
Cutting Diameter — Fractional9/32
Overall Length — in (OAL)18.0"
Overall Length — mm (OAL)457.2 mm
Flute Length — in (LCF)13.0"
Flute Length — mm (LCF)330.2 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.2813"
Connection Dia. — mm (DCON)7.15 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number59718
File Type Download
18139/32 — 3D Model STP Download
18139/32 — Line Drawing PDF Download
