R55K
R55K
R55K

R55K

UGC PRE6000298
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.26 CAD - $20.26 CAD
$20.26 CAD
$20.26 CAD - $20.26 CAD
$20.26 CAD

Vendu en lots de : 6

Foret série longue, queue cylindrique, diamètre 0,2810" (K) avec une longueur totale de 6.1/4" et une longueur de coupe de 3.7/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS brillant pour perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R55K
GradeLumineux
Product Number6000298
Product FamilyR55

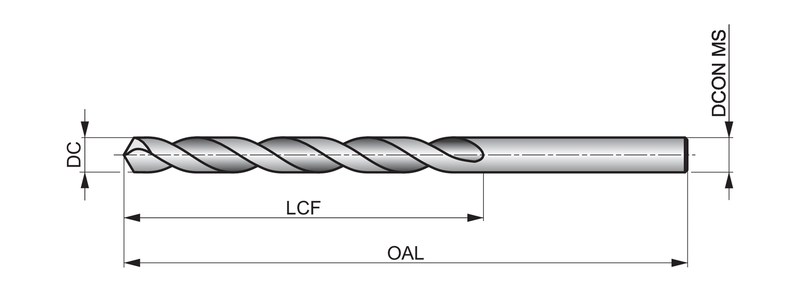

Dimensions
Cutting Diameter — in (DC)0.281"
Cutting Diameter — mm (DC)7.14 mm
Overall Length — in (OAL)6.25"
Overall Length — mm (OAL)158.75 mm
Flute Length — in (LCF)3.875"
Flute Length — mm (LCF)98.43 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.281"
Connection Dia. — mm (DCON)7.14 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number55011
File Type Download
R55K — 3D Model STP Download
R55K — Line Drawing PDF Download
