18133/8
18133/8
18133/8

18133/8

UGC PRE6000306
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$77.50 CAD - $77.50 CAD
$77.50 CAD
$77.50 CAD - $77.50 CAD
$77.50 CAD

Vendu en lots de : 1

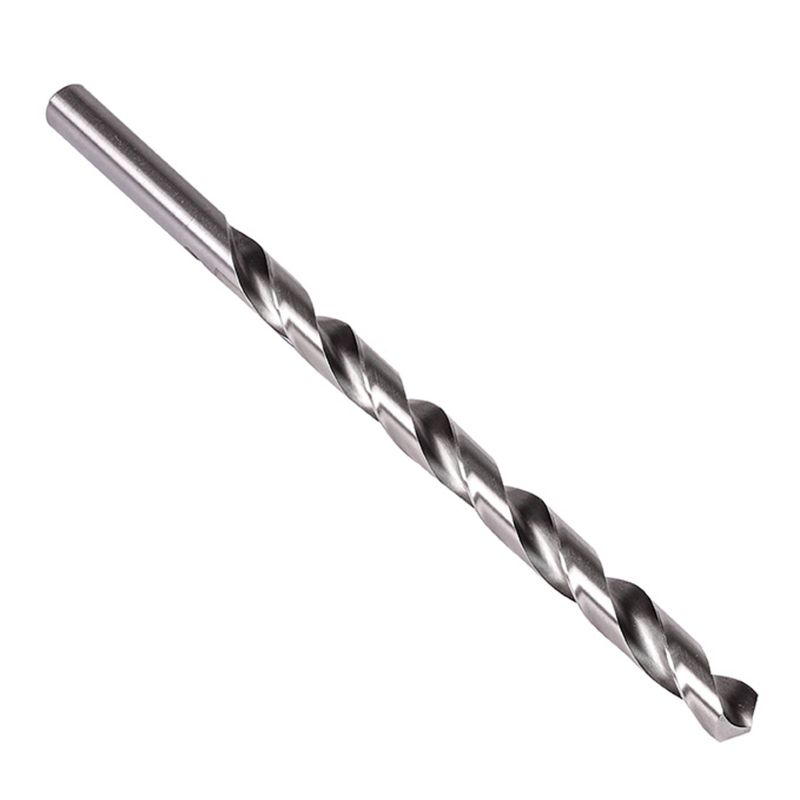

Foret de très grande longueur à queue cylindrique, diamètre 0,3750" (3/8) avec une longueur totale de 18" et une longueur de coupe de 13" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage de 15xD avec débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)18133/8
GradeLumineux
Product Number6000306
Product Family1813
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)18.0"
Overall Length — mm (OAL)457.2 mm
Flute Length — in (LCF)13.0"
Flute Length — mm (LCF)330.2 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number59724
File Type Download
18133/8 — 3D Model STP Download
18133/8 — Line Drawing PDF Download
