R56CO17/32
R56CO17/32

R56CO17/32

UGC PRE6000364
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.76 CAD - $49.76 CAD
$49.76 CAD
$49.76 CAD - $49.76 CAD
$49.76 CAD

Vendu en lots de : 1

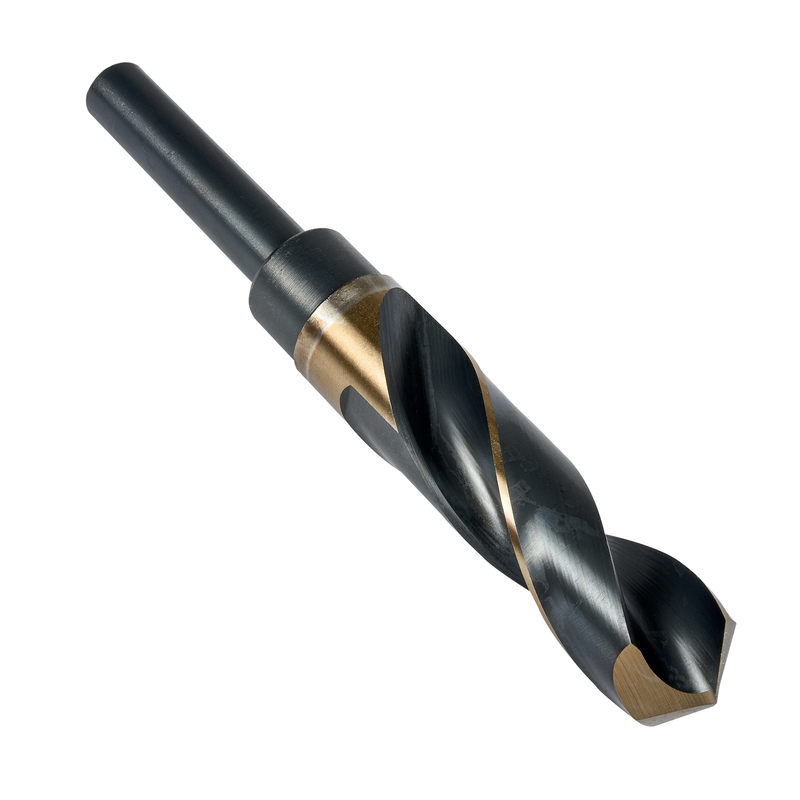

Foret de longueur jobber avec queue cylindrique réduite de 1/2", diamètre 0,5313" (17/32) avec une longueur totale de 6" et une longueur de goujure de 3" selon la norme ANSI avec une pointe fendue à 118°, en HSS-E au cobalt avec finition vapeur + bronze pour le perçage 4xD sans débourrage dans l'acier, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R56CO17/32
GradeST/Bronze
Product Number6000364
Product FamilyR56CO
Dimensions
Cutting Diameter — in (DC)0.5313"
Cutting Diameter — mm (DC)13.5 mm
Cutting Diameter — Fractional17/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number92334
File Type Download
R56CO17/32 — 3D Model STP Download
R56CO17/32 — Line Drawing PDF Download
