R5147/64
R5147/64
R5147/64

R5147/64

UGC PRE6000371
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.13 CAD - $79.13 CAD
$79.13 CAD
$79.13 CAD - $79.13 CAD
$79.13 CAD

Vendu en lots de : 1

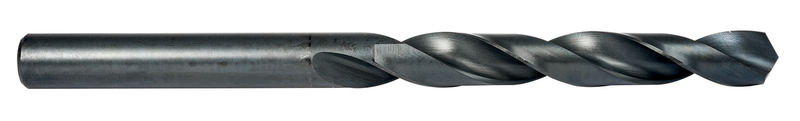

Foret série longue à queue droite, diamètre 0,7344" (47/64) avec une longueur totale de 9,3/4" et une longueur de goujure de 5,7/8" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition trempée à la vapeur pour perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5147/64
GradeTrempé à la vapeur
Product Number6000371
Product FamilyR51
Dimensions
Cutting Diameter — in (DC)0.7344"
Cutting Diameter — mm (DC)18.65 mm
Cutting Diameter — Fractional47/64
Overall Length — in (OAL)9.75"
Overall Length — mm (OAL)247.65 mm
Flute Length — in (LCF)5.875"
Flute Length — mm (LCF)149.23 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.7344"
Connection Dia. — mm (DCON)18.65 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51047
File Type Download
R5147/64 — 3D Model STP Download
R5147/64 — Line Drawing PDF Download
