181333/64
181333/64
181333/64

181333/64

UGC PRE6000375
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$136.84 CAD - $136.84 CAD
$136.84 CAD
$136.84 CAD - $136.84 CAD
$136.84 CAD

Vendu en lots de : 1

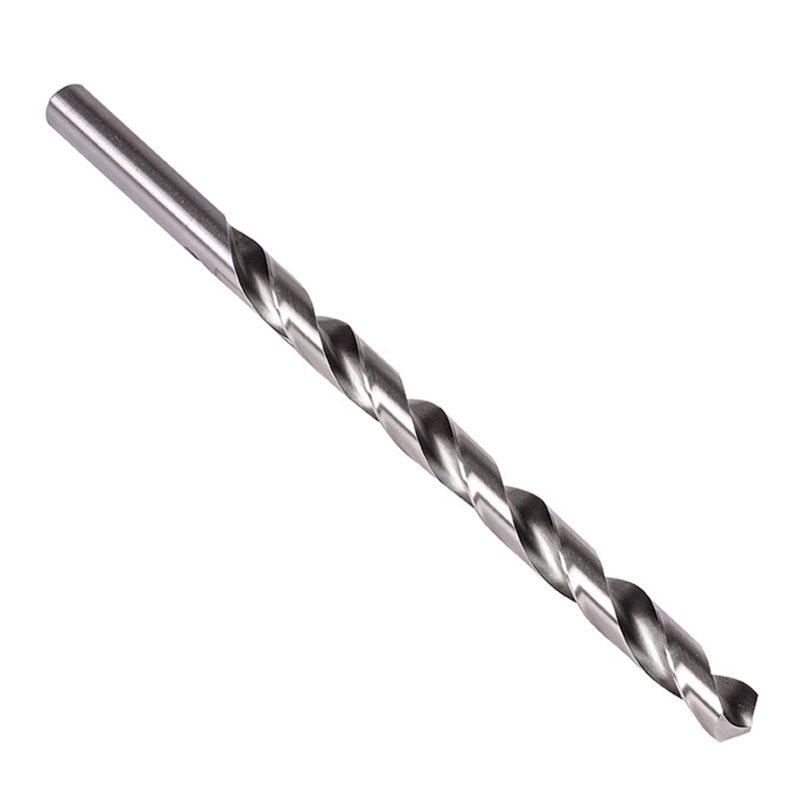

Foret extra-long à queue droite, diamètre 0,5156" (33/64) avec une longueur totale de 18" et une longueur de coupe de 13" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition trempée à la vapeur pour un perçage 15xD avec débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)181333/64
GradeLumineux
Product Number6000375
Product Family1813
Dimensions
Cutting Diameter — in (DC)0.5156"
Cutting Diameter — mm (DC)13.1 mm
Cutting Diameter — Fractional33/64
Overall Length — in (OAL)18.0"
Overall Length — mm (OAL)457.2 mm
Flute Length — in (LCF)13.0"
Flute Length — mm (LCF)330.2 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.5156"
Connection Dia. — mm (DCON)13.1 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number59733
File Type Download
181333/64 — 3D Model STP Download
181333/64 — Line Drawing PDF Download
