R515/16
R515/16
R515/16

R515/16

UGC PRE6000381
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.10 CAD - $14.10 CAD
$14.10 CAD
$14.10 CAD - $14.10 CAD
$14.10 CAD

Vendu en lots de : 6

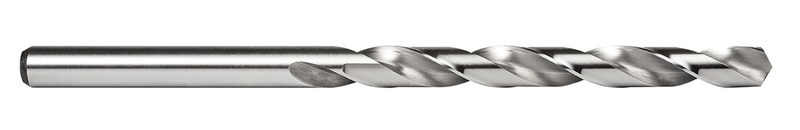

Foret série longue, à queue cylindrique, diamètre 0,3125" (5/16), longueur totale 6.3/8", longueur utile 4" selon norme ANSI, angle de pointe 118°, HSS finition brillante pour perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R515/16
GradeLumineux
Product Number6000381
Product FamilyR51
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)6.375"
Overall Length — mm (OAL)161.93 mm
Flute Length — in (LCF)4.0"
Flute Length — mm (LCF)101.6 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51020
File Type Download
R515/16 — 3D Model STP Download
R515/16 — Line Drawing PDF Download
