R56CO31/32
R56CO31/32

R56CO31/32

UGC PRE6000398
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$109.16 CAD - $109.16 CAD
$109.16 CAD
$109.16 CAD - $109.16 CAD
$109.16 CAD

Vendu en lots de : 1

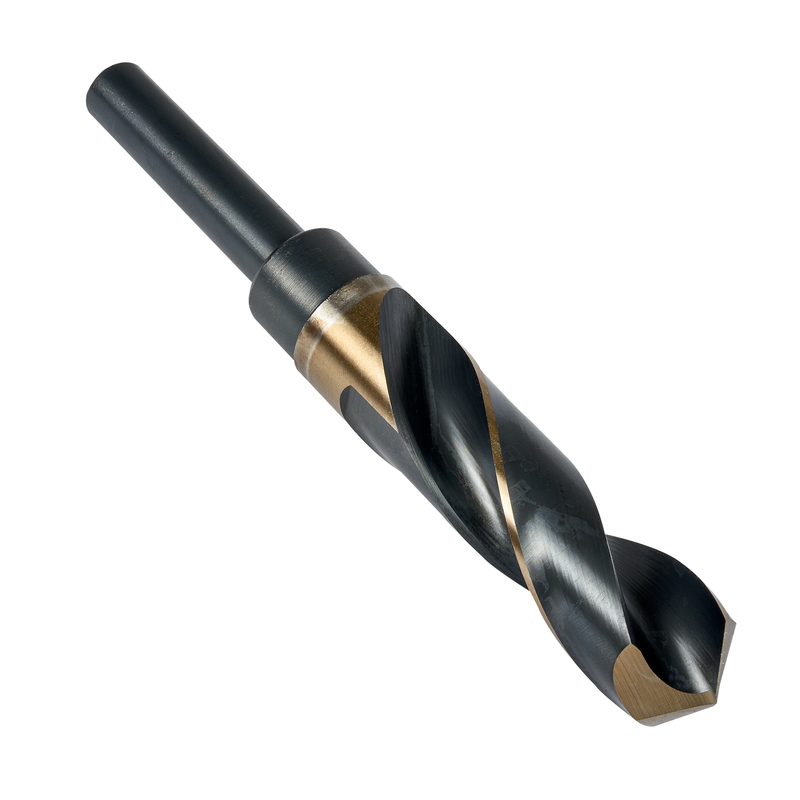

Foret jobber avec queue droite réduite de 1/2", diamètre 0,9688" (31/32) avec une longueur totale de 6" et une longueur de goujure de 3" selon la norme ANSI avec une pointe fendue à 118°, en HSS-E à base de cobalt avec finition bronzée et trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R56CO31/32
GradeST/Bronze
Product Number6000398
Product FamilyR56CO
Dimensions
Cutting Diameter — in (DC)0.9688"
Cutting Diameter — mm (DC)24.61 mm
Cutting Diameter — Fractional31/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number92362
File Type Download
R56CO31/32 — 3D Model STP Download
R56CO31/32 — Line Drawing PDF Download
