R56CO47/64
R56CO47/64

R56CO47/64

UGC PRE6000432
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$71.74 CAD - $71.74 CAD
$71.74 CAD
$71.74 CAD - $71.74 CAD
$71.74 CAD

Vendu en lots de : 1

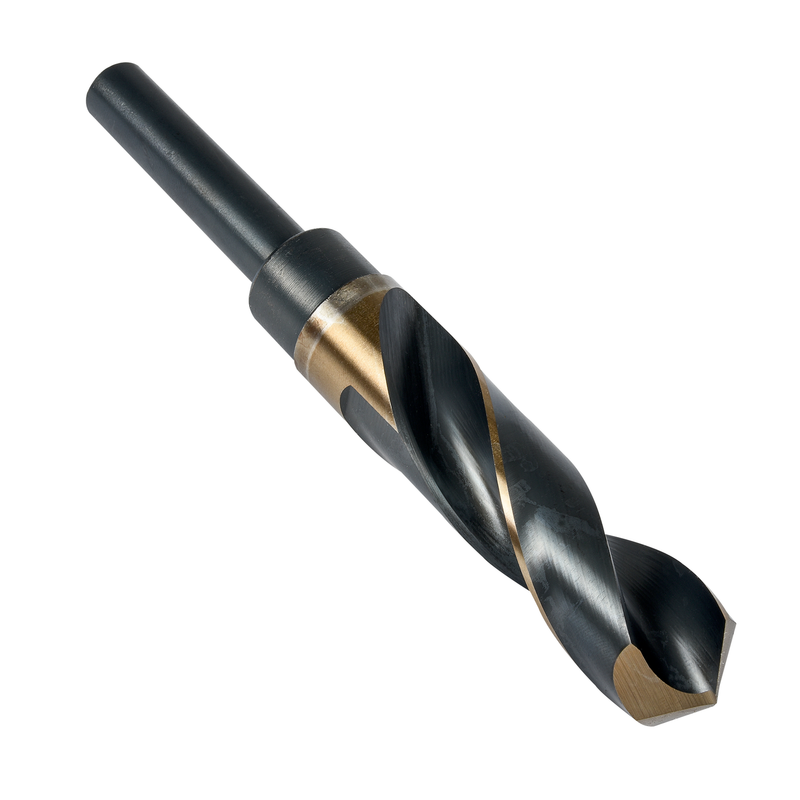

Foret de longueur jobber avec queue cylindrique réduite de 1/2", diamètre de 0,7344" (47/64) avec une longueur totale de 6" et une longueur de goujure de 3" selon la norme ANSI avec une pointe fendue à 118°, en HSS-E à base de cobalt avec finition à la vapeur + bronze pour le perçage 4xD sans débourrage dans l'acier, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R56CO47/64
GradeST/Bronze
Product Number6000432
Product FamilyR56CO
Dimensions
Cutting Diameter — in (DC)0.7344"
Cutting Diameter — mm (DC)18.65 mm
Cutting Diameter — Fractional47/64
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number92347
File Type Download
R56CO47/64 — 3D Model STP Download
R56CO47/64 — Line Drawing PDF Download
