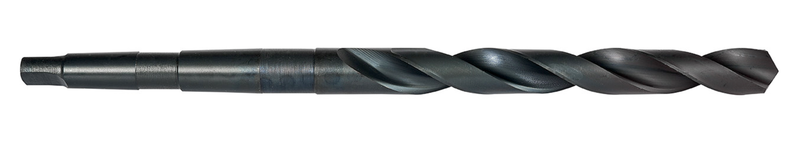

S2091.1/8
S2091.1/8

S2091.1/8

UGC PRE6000436
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$192.64 CAD - $192.64 CAD
$192.64 CAD
$192.64 CAD - $192.64 CAD
$192.64 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2091.1/8
GradeTrempé à la vapeur
Product Number6000436
Product FamilyS209

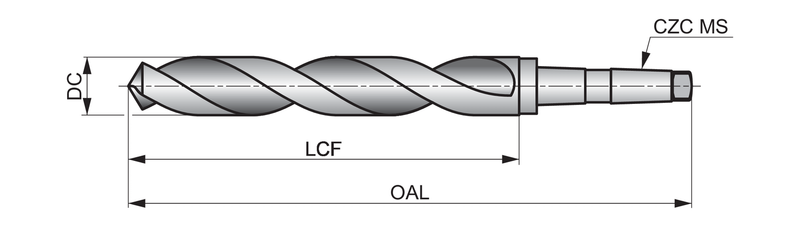

Dimensions
Cutting Diameter — in (DC)1.125"
Cutting Diameter — mm (DC)28.58 mm
Cutting Diameter — Fractional1.1/8
Overall Length — in (OAL)11.75"
Overall Length — mm (OAL)298.45 mm
Flute Length — in (LCF)7.125"
Flute Length — mm (LCF)180.98 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number23108
File Type Download
S2091.1/8 — 3D Model STP Download
S2091.1/8 — Line Drawing PDF Download
