S2091.3/16
S2091.3/16

S2091.3/16

UGC PRE6000476
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$213.90 CAD - $213.90 CAD
$213.90 CAD
$213.90 CAD - $213.90 CAD
$213.90 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2091.3/16
GradeTrempé à la vapeur
Product Number6000476
Product FamilyS209

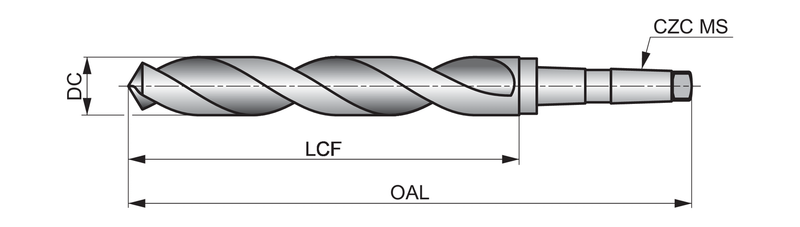

Dimensions
Cutting Diameter — in (DC)1.1875"
Cutting Diameter — mm (DC)30.16 mm
Cutting Diameter — Fractional1,3/16
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)7.375"
Flute Length — mm (LCF)187.33 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number23112
File Type Download
S2091.3/16 — 3D Model STP Download
S2091.3/16 — Line Drawing PDF Download
