5ATL10,0
5ATL10,0

5ATL10,0

UGC PRE6000511
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.74 CAD - $22.74 CAD
$22.74 CAD
$22.74 CAD - $22.74 CAD
$22.74 CAD

Vendu en lots de : 6

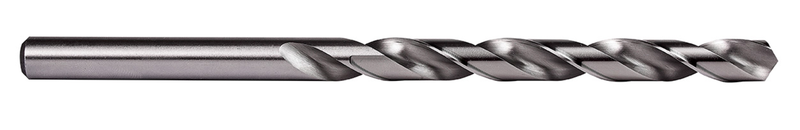

Foret série longue avec queue droite, diamètre 10 mm, longueur totale 184 mm et longueur de goujure 121 mm, conforme à la norme DIN 340, avec un angle de pointe de 118°, en HSS finition brillante pour un perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)5ATL10.0
GradeLumineux
Product Number6000511
Product Family5ATL

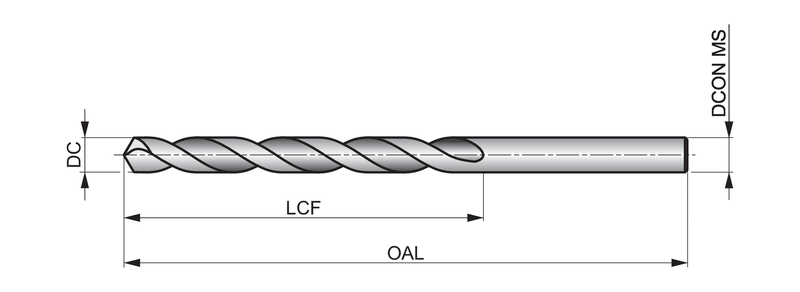

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)7.2441"
Overall Length — mm (OAL)184.0 mm
Flute Length — in (LCF)4.7638"
Flute Length — mm (LCF)121.0 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 340
Reference Numbers
EDP Number57100
File Type Download
5ATL10,0 — 3D Model STP Download
5ATL10,0 — Line Drawing PDF Download
