UGC PRE6000708
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.59 CAD - $4.59 CAD
$4.59 CAD
$4.59 CAD - $4.59 CAD
$4.59 CAD

Vendu en lots de : 12

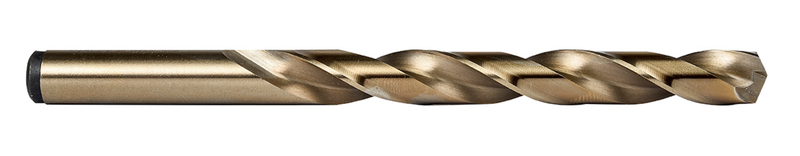

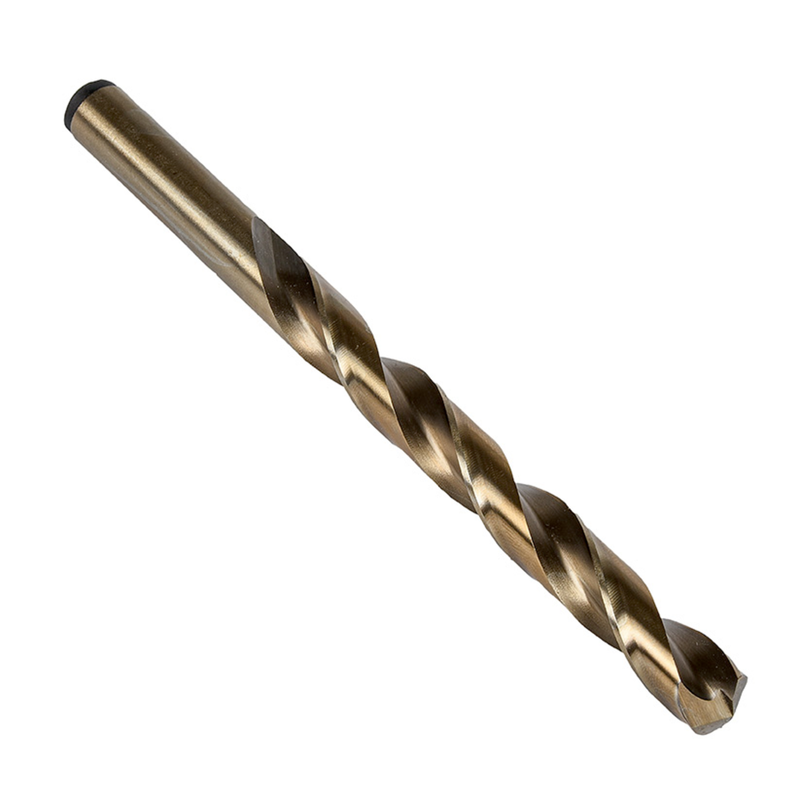

Foret de longueur standard avec queue cylindrique, diamètre de 4,2 mm et une longueur totale de 75 mm, longueur utile de 43 mm, conforme à la norme NAS907 Type J avec pointe auto-centrante robuste à 135°, en HSS-E à base de cobalt avec finition bronze pour un perçage jusqu'à 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)2ACO4.2
GradeBronze
Product Number6000708
Product Family2ACO
Dimensions
Cutting Diameter — in (DC)0.1654"
Cutting Diameter — mm (DC)4.2 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Flute Length — in (LCF)1.6929"
Flute Length — mm (LCF)43.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1654"
Connection Dia. — mm (DCON)4.2 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number16442
File Type Download
2ACO4.2 — 3D Model STP Download
2ACO4.2 — Line Drawing PDF Download
