209CO1/4
209CO1/4

209CO1/4

UGC PRE6000767
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.24 CAD - $32.24 CAD
$32.24 CAD
$32.24 CAD - $32.24 CAD
$32.24 CAD

Vendu en lots de : 1

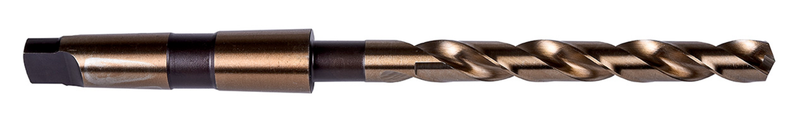

Foret jobber à queue conique, diamètre 0,2500" (1/4) avec une longueur totale de 6.1/8" et une longueur de coupe de 2.7/8" selon la norme ANSI avec une pointe conique amincie de 135°, en HSS-E à base de cobalt avec finition bronze pour le perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)209CO1/4
GradeBronze
Product Number6000767
Product Family209CO
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)6.125"
Overall Length — mm (OAL)155.58 mm
Flute Length — in (LCF)2.875"
Flute Length — mm (LCF)73.03 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)135°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number21316
File Type Download
209CO1/4 — 3D Model STP Download
209CO1/4 — Line Drawing PDF Download
