209CO21/32
209CO21/32

209CO21/32

UGC PRE6000774
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$97.97 CAD - $97.97 CAD
$97.97 CAD
$97.97 CAD - $97.97 CAD
$97.97 CAD

Vendu en lots de : 1

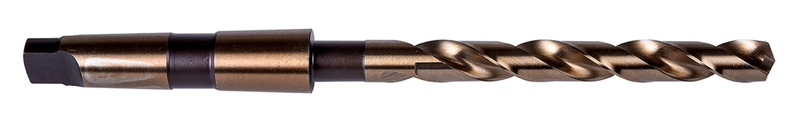

Foret de longueur jobber avec queue conique, diamètre 0,6563" (21/32) avec une longueur totale de 9,3/4" et une longueur de goujure de 5,1/8" selon la norme ANSI avec une pointe conique amincie de 135°, HSS-E à base de cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)209CO21/32
GradeBronze
Product Number6000774
Product Family209CO
Dimensions
Cutting Diameter — in (DC)0.6563"
Cutting Diameter — mm (DC)16.67 mm
Cutting Diameter — Fractional21/32
Overall Length — in (OAL)9.75"
Overall Length — mm (OAL)247.65 mm
Flute Length — in (LCF)5.125"
Flute Length — mm (LCF)130.18 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)135°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number21342
File Type Download
209CO21/32 — 3D Model STP Download
209CO21/32 — Line Drawing PDF Download
