209CO23/32
209CO23/32

209CO23/32

UGC PRE6000779
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$114.94 CAD - $114.94 CAD
$114.94 CAD
$114.94 CAD - $114.94 CAD
$114.94 CAD

Vendu en lots de : 1

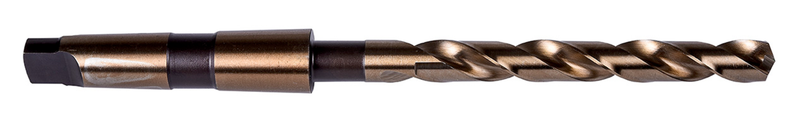

Foret jobber à queue conique, diamètre 0,7188" (23/32) avec une longueur totale de 10.1/4" et une longueur de goujure de 5.5/8" selon la norme ANSI avec une pointe conique amincie de 135°, en HSS-E à base de cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)209CO23/32
GradeBronze
Product Number6000779
Product Family209CO
Dimensions
Cutting Diameter — in (DC)0.7188"
Cutting Diameter — mm (DC)18.26 mm
Cutting Diameter — Fractional23/32
Overall Length — in (OAL)10.25"
Overall Length — mm (OAL)260.35 mm
Flute Length — in (LCF)5.625"
Flute Length — mm (LCF)142.88 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)135°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number21348
File Type Download
209CO23/32 — 3D Model STP Download
209CO23/32 — Line Drawing PDF Download
