209CO25/32
209CO25/32

209CO25/32

UGC PRE6000783
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$127.67 CAD - $127.67 CAD
$127.67 CAD
$127.67 CAD - $127.67 CAD
$127.67 CAD

Vendu en lots de : 1

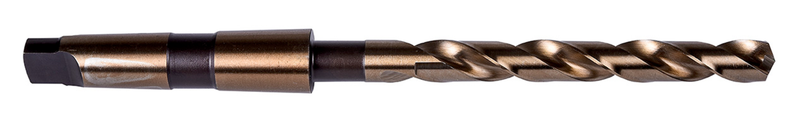

Foret de longueur jobber à queue conique, diamètre 0,7813" (25/32) avec une longueur totale de 10,5/8" et une longueur de goujure de 6" selon la norme ANSI avec une pointe conique amincie de 135°, en HSS-E à base de cobalt avec une finition bronze pour le perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)209CO25/32
GradeBronze
Product Number6000783
Product Family209CO
Dimensions
Cutting Diameter — in (DC)0.7813"
Cutting Diameter — mm (DC)19.85 mm
Cutting Diameter — Fractional25/32
Overall Length — in (OAL)10.625"
Overall Length — mm (OAL)269.88 mm
Flute Length — in (LCF)6.0"
Flute Length — mm (LCF)152.4 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)135°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number21352
File Type Download
209CO25/32 — 3D Model STP Download
209CO25/32 — Line Drawing PDF Download
