209CO27/64
209CO27/64

209CO27/64

UGC PRE6000789
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.17 CAD - $60.17 CAD
$60.17 CAD
$60.17 CAD - $60.17 CAD
$60.17 CAD

Vendu en lots de : 1

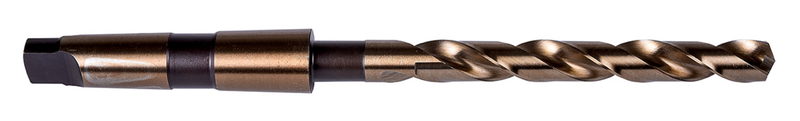

Foret de longueur jobber à queue conique, diamètre 0,4219" (27/64) avec une longueur totale de 7,3/4" et une longueur de coupe de 3,7/8" selon la norme ANSI avec une pointe conique affûtée à 135°, HSS-E à base de cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)209CO27/64
GradeBronze
Product Number6000789
Product Family209CO
Dimensions
Cutting Diameter — in (DC)0.4219"
Cutting Diameter — mm (DC)10.72 mm
Cutting Diameter — Fractional27/64
Overall Length — in (OAL)7.75"
Overall Length — mm (OAL)196.85 mm
Flute Length — in (LCF)3.875"
Flute Length — mm (LCF)98.43 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)135°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number21327
File Type Download
209CO27/64 — 3D Model STP Download
209CO27/64 — Line Drawing PDF Download
