209CO3/4
209CO3/4

209CO3/4

UGC PRE6000798
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$121.11 CAD - $121.11 CAD
$121.11 CAD
$121.11 CAD - $121.11 CAD
$121.11 CAD

Vendu en lots de : 1

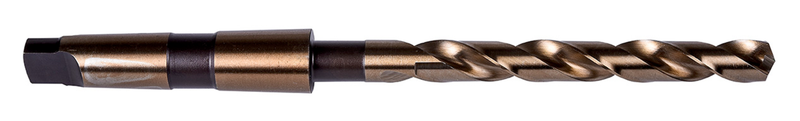

Foret jobber avec queue conique, diamètre 0,7500" (3/4) avec une longueur totale de 10,1/2" et une longueur de goujure de 5,7/8" selon la norme ANSI avec une pointe conique amincie de 135°, HSS-E à base de cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)209CO3/4
GradeBronze
Product Number6000798
Product Family209CO
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)10.5"
Overall Length — mm (OAL)266.7 mm
Flute Length — in (LCF)5.875"
Flute Length — mm (LCF)149.23 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)135°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number21350
File Type Download
209CO3/4 — 3D Model STP Download
209CO3/4 — Line Drawing PDF Download
