209CO3/8
209CO3/8

209CO3/8

UGC PRE6000800
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$48.99 CAD - $48.99 CAD
$48.99 CAD
$48.99 CAD - $48.99 CAD
$48.99 CAD

Vendu en lots de : 1

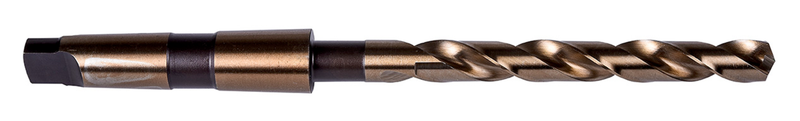

Forets à queue conique de longueur jobber, diamètre 0,3750" (3/8) avec une longueur totale de 7.3/8" et une longueur de coupe de 3.1/2" selon la norme ANSI avec une pointe conique amincie de 135°, en HSS-E à base de cobalt avec finition bronze pour le perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)209CO3/8
GradeBronze
Product Number6000800
Product Family209CO
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)7.375"
Overall Length — mm (OAL)187.33 mm
Flute Length — in (LCF)3.5"
Flute Length — mm (LCF)88.9 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)135°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number21324
File Type Download
209CO3/8 — 3D Model STP Download
209CO3/8 — Line Drawing PDF Download
