209CO11/16
209CO11/16

209CO11/16

UGC PRE6000806
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.91 CAD - $104.91 CAD
$104.91 CAD
$104.91 CAD - $104.91 CAD
$104.91 CAD

Vendu en lots de : 1

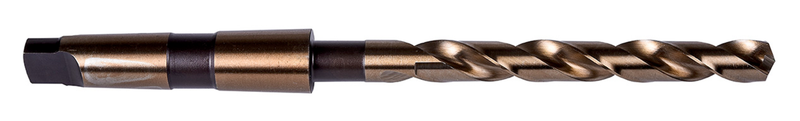

Foret normal avec queue conique, diamètre 0,6875" (11/16) avec une longueur totale de 10" et une longueur de goujure de 5.3/8" selon la norme ANSI avec une pointe conique amincie de 135°, en HSS-E au cobalt avec finition bronze pour un perçage à 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)209CO11/16
GradeBronze
Product Number6000806
Product Family209CO
Dimensions
Cutting Diameter — in (DC)0.6875"
Cutting Diameter — mm (DC)17.46 mm
Cutting Diameter — Fractional16/11
Overall Length — in (OAL)10.0"
Overall Length — mm (OAL)254.0 mm
Flute Length — in (LCF)5.375"
Flute Length — mm (LCF)136.53 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)135°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number21344
File Type Download
209CO11/16 — 3D Model STP Download
209CO11/16 — Line Drawing PDF Download
