209CO35/64
209CO35/64

209CO35/64

UGC PRE6000817
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.84 CAD - $79.84 CAD
$79.84 CAD
$79.84 CAD - $79.84 CAD
$79.84 CAD

Vendu en lots de : 1

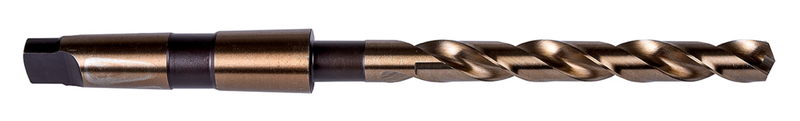

Foret de longueur jobber à queue conique, diamètre 0,5469" (35/64) avec une longueur totale de 8,3/4" et une longueur de coupe de 4,7/8" selon la norme ANSI, avec une pointe conique amincie de 135°, en HSS-E à base de cobalt avec finition bronze pour un perçage à 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)209CO35/64
GradeBronze
Product Number6000817
Product Family209CO
Dimensions
Cutting Diameter — in (DC)0.5469"
Cutting Diameter — mm (DC)13.89 mm
Cutting Diameter — Fractional35/64
Overall Length — in (OAL)8.75"
Overall Length — mm (OAL)222.25 mm
Flute Length — in (LCF)4.875"
Flute Length — mm (LCF)123.83 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)135°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number21335
File Type Download
209CO35/64 — 3D Model STP Download
209CO35/64 — Line Drawing PDF Download
