5ATL2,5
5ATL2,5

5ATL2,5

UGC PRE6000828
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.91 CAD - $8.91 CAD
$8.91 CAD
$8.91 CAD - $8.91 CAD
$8.91 CAD

Vendu en lots de : 12

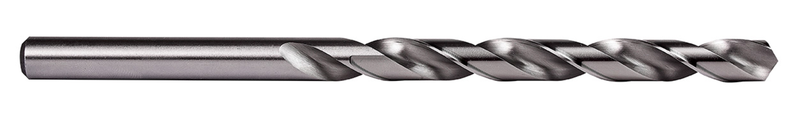

Foret série longue, à queue cylindrique, diamètre 2,5 mm, avec une longueur totale de 95 mm et une longueur de coupe de 62 mm, conforme à la norme DIN 340, avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage à 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)5ATL2.5
GradeLumineux
Product Number6000828
Product Family5ATL
Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)3.7402"
Overall Length — mm (OAL)95.0 mm
Flute Length — in (LCF)2.4409"
Flute Length — mm (LCF)62.0 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.0984"
Connection Dia. — mm (DCON)2.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 340
Reference Numbers
EDP Number56250
File Type Download
5ATL2,5 — 3D Model STP Download
5ATL2,5 — Line Drawing PDF Download
