209CO5/16
209CO5/16

209CO5/16

UGC PRE6000843
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.33 CAD - $36.33 CAD
$36.33 CAD
$36.33 CAD - $36.33 CAD
$36.33 CAD

Vendu en lots de : 1

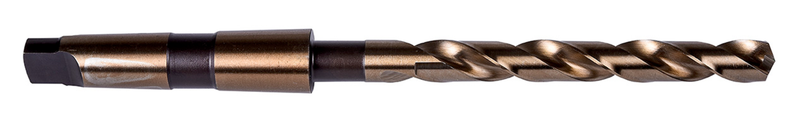

Foret de longueur jobber à queue conique, diamètre de 0,3125" (5/16) avec une longueur totale de 6,3/8" et une longueur de goujure de 3,1/8" selon la norme ANSI avec une pointe conique amincie de 135°, en HSS-E à base de cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)209CO5/16
GradeBronze
Product Number6000843
Product Family209CO
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)6.375"
Overall Length — mm (OAL)161.93 mm
Flute Length — in (LCF)3.125"
Flute Length — mm (LCF)79.38 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)135°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number21320
File Type Download
209CO5/16 — 3D Model STP Download
209CO5/16 — Line Drawing PDF Download
