2A8.9
2A8.9
2A8.9

2A8.9

UGC PRE6000877
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.93 CAD - $10.93 CAD
$10.93 CAD
$10.93 CAD - $10.93 CAD
$10.93 CAD

Vendu en lots de : 6

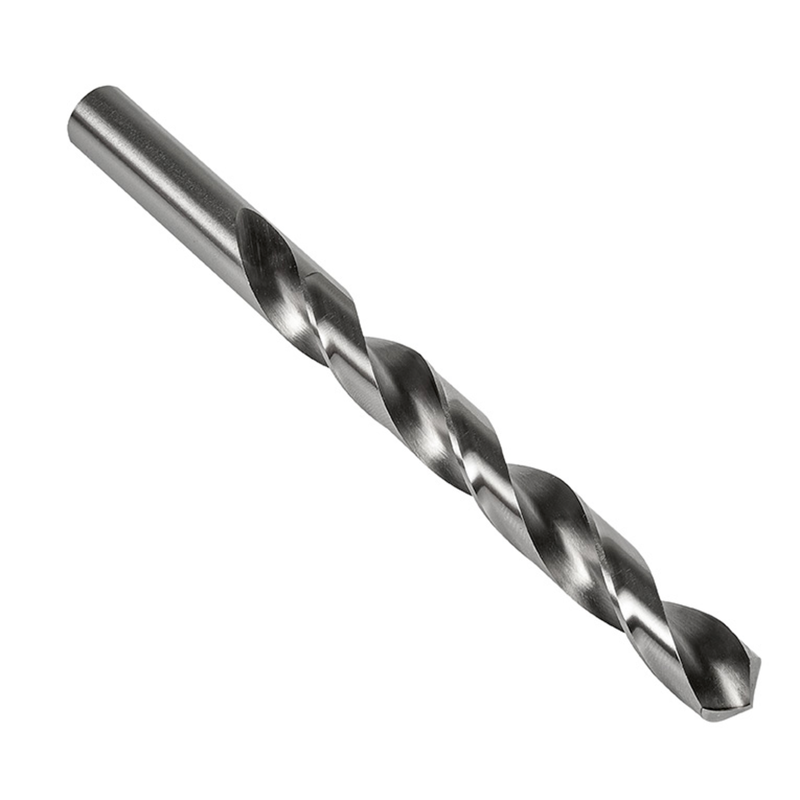

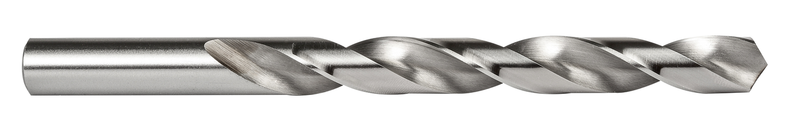

Foret hélicoïdal à queue cylindrique, diamètre 8,9 mm, longueur totale 125 mm et longueur de coupe 81 mm selon la norme DIN 338, angle de pointe 118°, HSS finition brillante pour le perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)2A8.9
GradeLumineux
Product Number6000877
Product Family2A

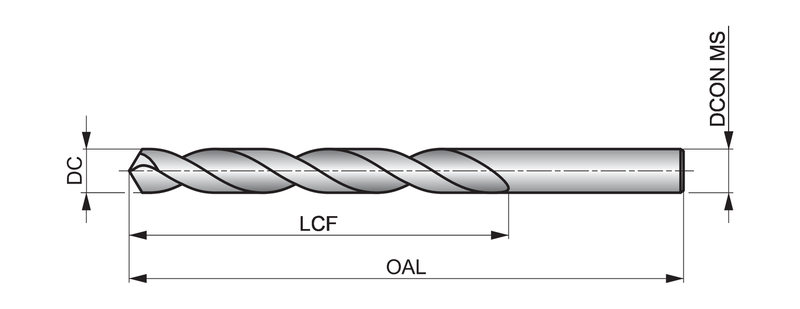

Dimensions
Cutting Diameter — in (DC)0.3504"
Cutting Diameter — mm (DC)8.9 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Flute Length — in (LCF)3.189"
Flute Length — mm (LCF)81.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3504"
Connection Dia. — mm (DCON)8.9 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number16089
File Type Download
2A8.9 — 3D Model STP Download
2A8.9 — Line Drawing PDF Download
