5ATL12.0
5ATL12.0

5ATL12.0

UGC PRE6000921
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.83 CAD - $30.83 CAD
$30.83 CAD
$30.83 CAD - $30.83 CAD
$30.83 CAD

Vendu en lots de : 6

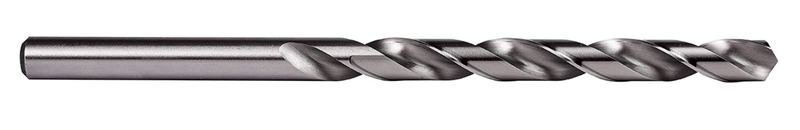

Foret série longue, queue cylindrique, diamètre 12mm, longueur totale 205mm, longueur utile 134mm selon la norme DIN 340, angle de pointe 118°, en HSS avec finition brillante pour le perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)5ATL12.0
GradeLumineux
Product Number6000921
Product Family5ATL
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)8.0709"
Overall Length — mm (OAL)205.0 mm
Flute Length — in (LCF)5.2756"
Flute Length — mm (LCF)134.0 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 340
Reference Numbers
EDP Number57120
File Type Download
5ATL12.0 — 3D Model STP Download
5ATL12.0 — Line Drawing PDF Download
