209CO17/32
209CO17/32

209CO17/32

UGC PRE6000948
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.13 CAD - $72.13 CAD
$72.13 CAD
$72.13 CAD - $72.13 CAD
$72.13 CAD

Vendu en lots de : 1

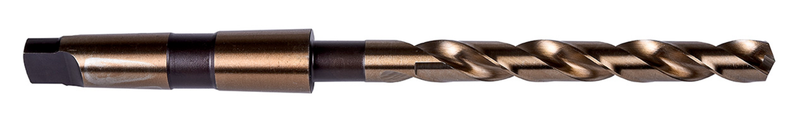

Foret jobber à queue conique, diamètre 0,5313" (17/32) avec une longueur totale de 8,1/2" et une longueur de goujure de 4,5/8" selon la norme ANSI avec une pointe conique amincie de 135°, en HSS-E à base de cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)209CO17/32
GradeBronze
Product Number6000948
Product Family209CO
Dimensions
Cutting Diameter — in (DC)0.5313"
Cutting Diameter — mm (DC)13.5 mm
Cutting Diameter — Fractional17/32
Overall Length — in (OAL)8.5"
Overall Length — mm (OAL)215.9 mm
Flute Length — in (LCF)4.625"
Flute Length — mm (LCF)117.48 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)135°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number21334
File Type Download
209CO17/32 — 3D Model STP Download
209CO17/32 — Line Drawing PDF Download
