209CO1.3/8
209CO1.3/8

209CO1.3/8

UGC PRE6000991
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$465.94 CAD - $465.94 CAD
$465.94 CAD
$465.94 CAD - $465.94 CAD
$465.94 CAD

Vendu en lots de : 1

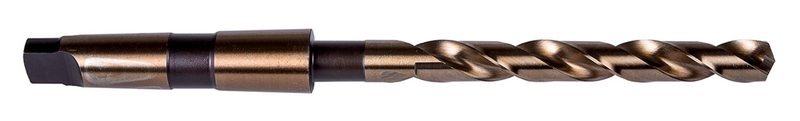

Foret de longueur Jobber à queue conique, diamètre 1,3750" (1.3/8) avec une longueur totale de 14,1/2" et une longueur de goujure de 8,7/8" selon la norme ANSI avec une pointe conique amincie à 135°, HSS-E à base de cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)209CO1.3/8
GradeBronze
Product Number6000991
Product Family209CO
Dimensions
Cutting Diameter — in (DC)1.375"
Cutting Diameter — mm (DC)34.93 mm
Cutting Diameter — FractionalUn et trois huitièmes
Overall Length — in (OAL)14.5"
Overall Length — mm (OAL)368.3 mm
Flute Length — in (LCF)8.875"
Flute Length — mm (LCF)225.43 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)135°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number21424
File Type Download
209CO1.3/8 — 3D Model STP Download
209CO1.3/8 — Line Drawing PDF Download
