UGC PRE6000998
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.77 CAD - $34.77 CAD
$34.77 CAD
$34.77 CAD - $34.77 CAD
$34.77 CAD

Vendu en lots de : 1

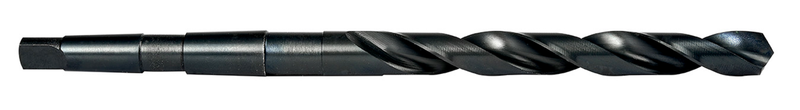

Foret jobber à queue conique, diamètre 0,5000" (1/2) avec une longueur totale de 8,1/4" et une longueur de coupe de 4,3/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempe vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)2091/2
GradeTrempé à la vapeur
Product Number6000998
Product Family209
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)8.25"
Overall Length — mm (OAL)209.55 mm
Flute Length — in (LCF)4.375"
Flute Length — mm (LCF)111.13 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number20032
File Type Download
2091/2 — 3D Model STP Download
2091/2 — Line Drawing PDF Download
