5ATS17,5
5ATS17,5

5ATS17,5

UGC PRE6001020
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$81.04 CAD - $81.04 CAD
$81.04 CAD
$81.04 CAD - $81.04 CAD
$81.04 CAD

Vendu en lots de : 1

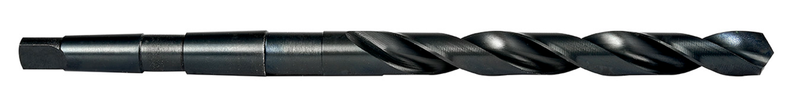

Forets courts à queue conique, diamètre 17,5mm avec une longueur totale de 228mm et une longueur de coupe de 130mm selon la norme DIN 345 avec un angle de pointe de 118°, en HSS avec finition recuite à la vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)5ATS17.5
GradeTrempé à la vapeur
Product Number6001020
Product Family5ATS

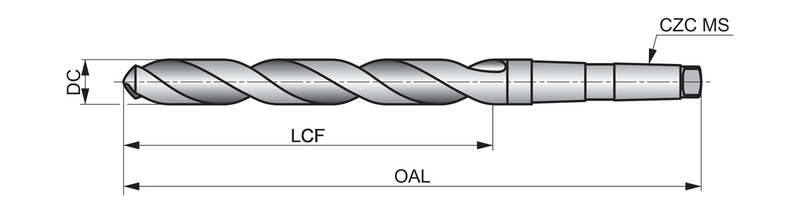

Dimensions
Cutting Diameter — in (DC)0.689"
Cutting Diameter — mm (DC)17.5 mm
Overall Length — in (OAL)8.9764"
Overall Length — mm (OAL)228.0 mm
Flute Length — in (LCF)5.1181"
Flute Length — mm (LCF)130.0 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 345
Reference Numbers
EDP Number26175
File Type Download
5ATS17,5 — 3D Model STP Download
5ATS17,5 — Line Drawing PDF Download
