209CO1/2
209CO1/2

209CO1/2

UGC PRE6001028
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.96 CAD - $65.96 CAD
$65.96 CAD
$65.96 CAD - $65.96 CAD
$65.96 CAD

Vendu en lots de : 1

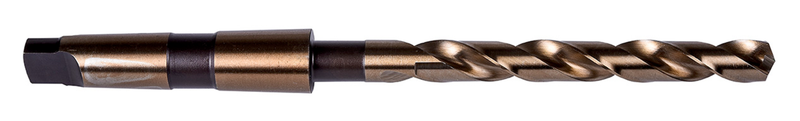

Foret jobber à queue conique, diamètre 0,5000" (1/2) avec une longueur totale de 8,1/4" et une longueur de coupe de 4,3/8" selon la norme ANSI avec une pointe conique amincie de 135°, en HSS-E à base de cobalt avec finition bronze pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)209CO1/2
GradeBronze
Product Number6001028
Product Family209CO
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)8.25"
Overall Length — mm (OAL)209.55 mm
Flute Length — in (LCF)4.375"
Flute Length — mm (LCF)111.13 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)135°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number21332
File Type Download
209CO1/2 — 3D Model STP Download
209CO1/2 — Line Drawing PDF Download
