5ATS20.0
5ATS20.0

5ATS20.0

UGC PRE6001041
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$113.81 CAD - $113.81 CAD
$113.81 CAD
$113.81 CAD - $113.81 CAD
$113.81 CAD

Vendu en lots de : 1

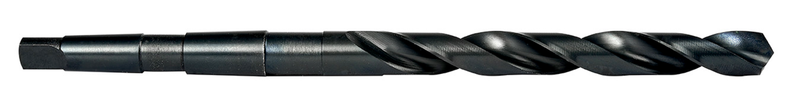

Foret de longueur normale à queue conique, diamètre 20mm avec une longueur totale de 238mm et une longueur de coupe de 140mm selon la norme DIN 345 avec un angle de pointe de 118°, HSS avec finition trempée à la vapeur pour le perçage de 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)5ATS20.0
GradeTrempé à la vapeur
Product Number6001041
Product Family5ATS

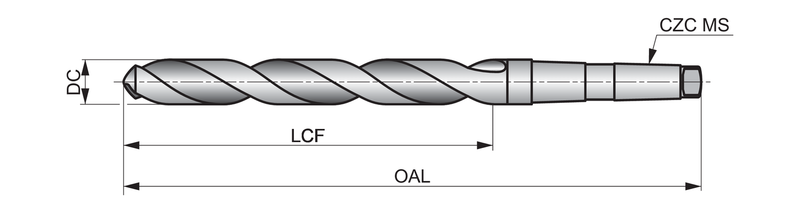

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)9.3701"
Overall Length — mm (OAL)238.0 mm
Flute Length — in (LCF)5.5118"
Flute Length — mm (LCF)140.0 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 345
Reference Numbers
EDP Number26200
File Type Download
5ATS20.0 — 3D Model STP Download
5ATS20.0 — Line Drawing PDF Download
