5ATS20.5
5ATS20.5

5ATS20.5

UGC PRE6001045
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$118.24 CAD - $118.24 CAD
$118.24 CAD
$118.24 CAD - $118.24 CAD
$118.24 CAD

Vendu en lots de : 1

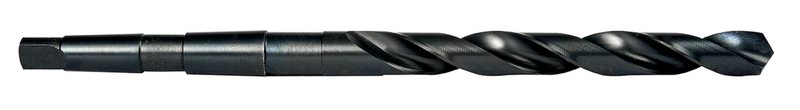

Forets courts à queue conique, diamètre 20,5 mm, longueur totale de 243 mm et longueur de coupe de 145 mm selon la norme DIN 345 avec un angle de pointe de 118°, en HSS avec finition revenu vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)5ATS20.5
GradeTrempé à la vapeur
Product Number6001045
Product Family5ATS

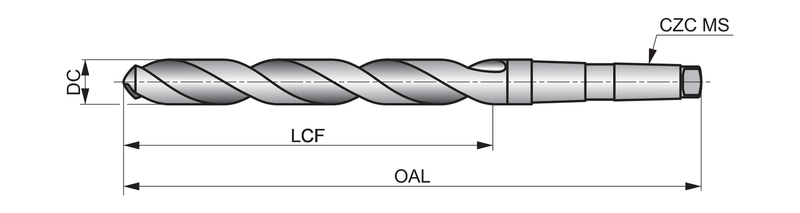

Dimensions
Cutting Diameter — in (DC)0.8071"
Cutting Diameter — mm (DC)20.5 mm
Overall Length — in (OAL)9.5669"
Overall Length — mm (OAL)243.0 mm
Flute Length — in (LCF)5.7087"
Flute Length — mm (LCF)145.0 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 345
Reference Numbers
EDP Number26205
File Type Download
5ATS20.5 — 3D Model STP Download
5ATS20.5 — Line Drawing PDF Download
