2093/16
2093/16

2093/16

UGC PRE6001135
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.00 CAD - $15.00 CAD
$15.00 CAD
$15.00 CAD - $15.00 CAD
$15.00 CAD

Vendu en lots de : 1

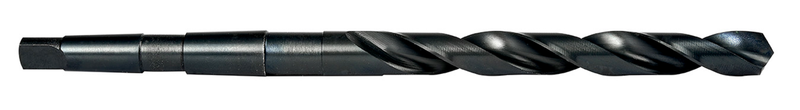

Foret jobber à queue conique, diamètre 0,1875" (3/16) avec une longueur totale de 5,3/4" et une longueur de goujure de 2,1/2" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour le perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)2093/16
GradeTrempé à la vapeur
Product Number6001135
Product Family209
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)5.75"
Overall Length — mm (OAL)146.05 mm
Flute Length — in (LCF)2.5"
Flute Length — mm (LCF)63.5 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number20012
File Type Download
2093/16 — 3D Model STP Download
2093/16 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
