5ATS16.0
5ATS16.0

5ATS16.0

UGC PRE6001165
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.86 CAD - $70.86 CAD
$70.86 CAD
$70.86 CAD - $70.86 CAD
$70.86 CAD

Vendu en lots de : 1

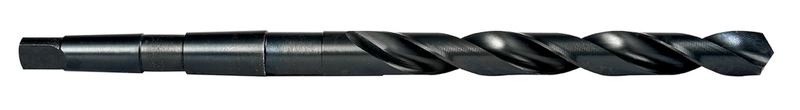

Foret queue conique de longueur normale, diamètre 16mm avec une longueur totale de 218mm et une longueur de coupe de 120mm selon la norme DIN 345 avec un angle de pointe de 118°, en HSS avec finition trempée vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)5ATS16.0
GradeTrempé à la vapeur
Product Number6001165
Product Family5ATS

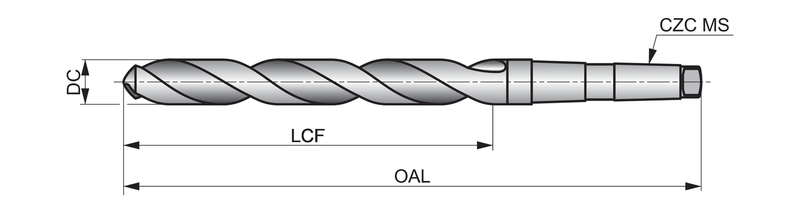

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)8.5827"
Overall Length — mm (OAL)218.0 mm
Flute Length — in (LCF)4.7244"
Flute Length — mm (LCF)120.0 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 345
Reference Numbers
EDP Number26160
File Type Download
5ATS16.0 — 3D Model STP Download
5ATS16.0 — Line Drawing PDF Download
