500-617/64
500-617/64
500-617/64

500-617/64

UGC PRE6001167
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.64 CAD - $20.64 CAD
$20.64 CAD
$20.64 CAD - $20.64 CAD
$20.64 CAD

Vendu en lots de : 6

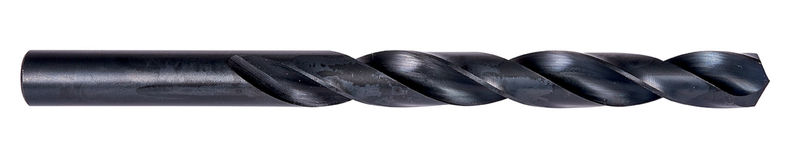

Foret de rallonge aéronautique à queue droite, diamètre 0,2656" (17/64) avec une longueur totale de 6" et une longueur de coupe de 2.7/8" selon la norme NAS907 Type B avec pointe fendue robuste à 135°, HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)500-617/64
GradeTrempé à la vapeur
Product Number6001167
Product Family500-6
Dimensions
Cutting Diameter — in (DC)0.2656"
Cutting Diameter — mm (DC)6.75 mm
Cutting Diameter — Fractional17/64
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)2.875"
Flute Length — mm (LCF)73.03 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2656"
Connection Dia. — mm (DCON)6.75 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number58017
File Type Download
500-617/64 — 3D Model STP Download
500-617/64 — Line Drawing PDF Download
