5ATS17.0
5ATS17.0

5ATS17.0

UGC PRE6001187
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.19 CAD - $72.19 CAD
$72.19 CAD
$72.19 CAD - $72.19 CAD
$72.19 CAD

Vendu en lots de : 1

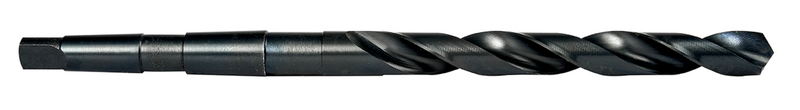

Foret étagé à queue conique, diamètre 17 mm, longueur totale 223 mm et longueur de goujure 125 mm selon la norme DIN 345, avec pointe à 118°, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)5ATS17.0
GradeTrempé à la vapeur
Product Number6001187
Product Family5ATS

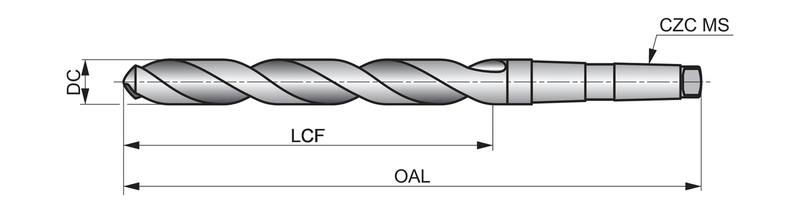

Dimensions
Cutting Diameter — in (DC)0.6693"
Cutting Diameter — mm (DC)17.0 mm
Overall Length — in (OAL)8.7795"
Overall Length — mm (OAL)223.0 mm
Flute Length — in (LCF)4.9213"
Flute Length — mm (LCF)125.0 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 345
Reference Numbers
EDP Number26170
File Type Download
5ATS17.0 — 3D Model STP Download
5ATS17.0 — Line Drawing PDF Download
