500-63/32
500-63/32
500-63/32

500-63/32

UGC PRE6001201
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.60 CAD - $4.60 CAD
$4.60 CAD
$4.60 CAD - $4.60 CAD
$4.60 CAD

Vendu en lots de : 12

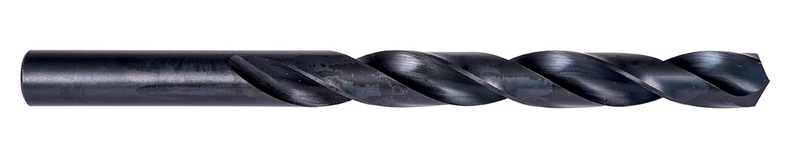

Forets d'avion à rallonge à queue droite, diamètre 0,0938" (3/32) d'une longueur totale de 6" et d'une longueur de coupe de 1,1/4" selon la norme NAS907 Type B avec pointe fendue robuste à 135°, HSS avec finition trempée à la vapeur pour le perçage 4xD sans débourrage dans l'acier, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)500-63/32
GradeTrempé à la vapeur
Product Number6001201
Product Family500-6
Dimensions
Cutting Diameter — in (DC)0.0938"
Cutting Diameter — mm (DC)2.38 mm
Cutting Diameter — Fractional3/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)1.25"
Flute Length — mm (LCF)31.75 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0938"
Connection Dia. — mm (DCON)2.38 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number58006
File Type Download
500-63/32 — 3D Model STP Download
500-63/32 — Line Drawing PDF Download
