500-129/32
500-129/32
500-129/32

500-129/32

UGC PRE6001214
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.60 CAD - $25.60 CAD
$25.60 CAD
$25.60 CAD - $25.60 CAD
$25.60 CAD

Vendu en lots de : 6

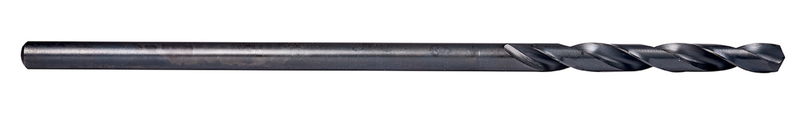

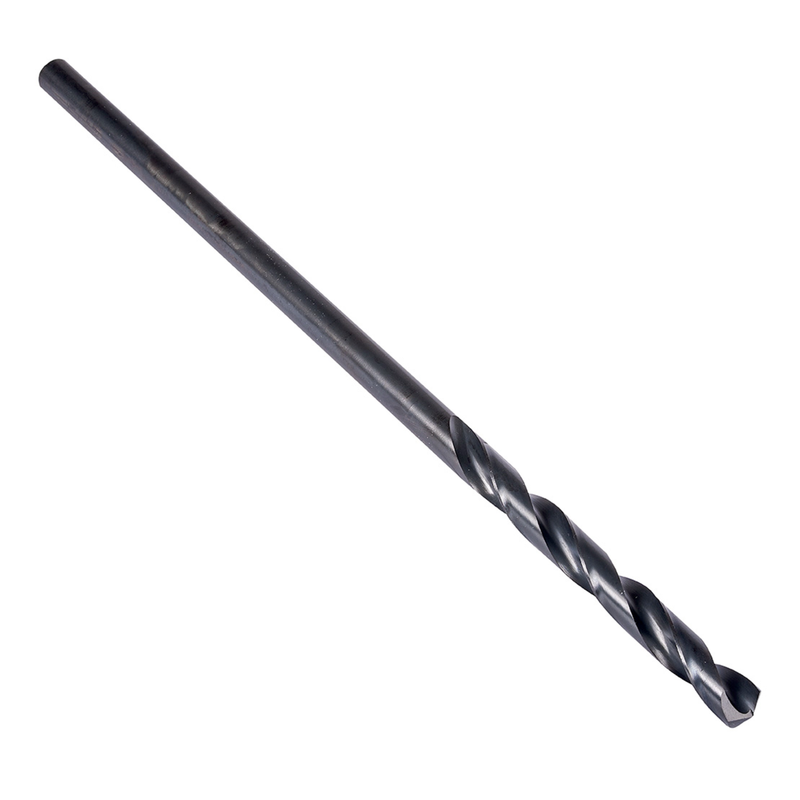

Foret de rallonge d'avion à queue droite, diamètre 0,2813" (9/32) avec une longueur totale de 12" et une longueur de coupe de 2,15/16" selon la norme NAS907 Type B avec pointe fendue robuste à 135°, en acier rapide HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)500-129/32
GradeTrempé à la vapeur
Product Number6001214
Product Family500-12

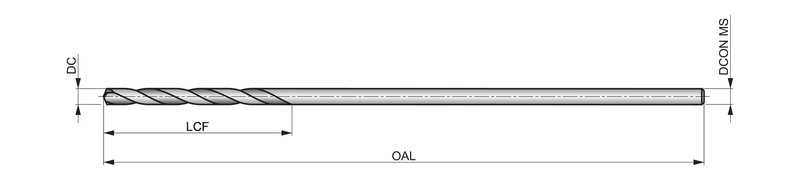

Dimensions
Cutting Diameter — in (DC)0.2813"
Cutting Diameter — mm (DC)7.15 mm
Cutting Diameter — Fractional9/32
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)2.9375"
Flute Length — mm (LCF)74.61 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2813"
Connection Dia. — mm (DCON)7.15 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number59018
File Type Download
500-129/32 — 3D Model STP Download
500-129/32 — Line Drawing PDF Download
