502-6D
502-6D

502-6D

UGC PRE6001272
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.47 CAD - $12.47 CAD
$12.47 CAD
$12.47 CAD - $12.47 CAD
$12.47 CAD

Vendu en lots de : 12

Foret d'aviation à queue cylindrique, diamètre 0,2460" (D), longueur totale de 6" et longueur de coupe de 2,3/4", conforme à la norme NAS907 Type B, avec pointe fendue robuste à 135°, en acier rapide (HSS) avec finition brunie vapeur, pour le perçage de 4xD sans débourrage dans l'acier, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)502-6D
GradeTrempé à la vapeur
Product Number6001272
Product Family502-6

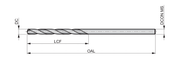

Dimensions
Cutting Diameter — in (DC)0.246"
Cutting Diameter — mm (DC)6.25 mm
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)2.75"
Flute Length — mm (LCF)69.85 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.246"
Connection Dia. — mm (DCON)6.25 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number58204
File Type Download
502-6D — 3D Model STP Download
502-6D — Line Drawing PDF Download
