500-121/2
500-121/2
500-121/2

500-121/2

UGC PRE6001318
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.24 CAD - $56.24 CAD
$56.24 CAD
$56.24 CAD - $56.24 CAD
$56.24 CAD

Vendu en lots de : 3

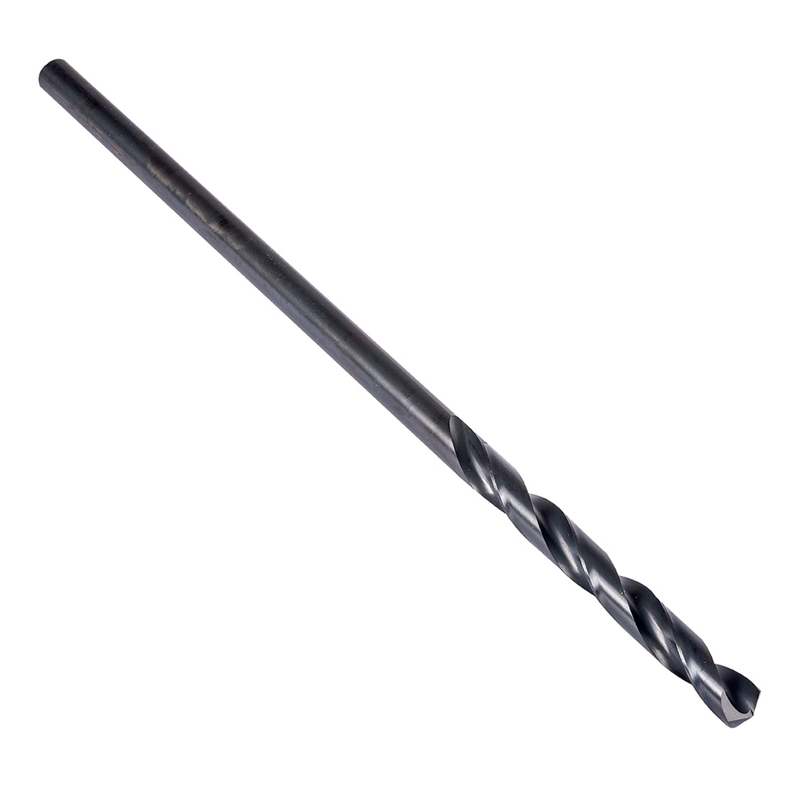

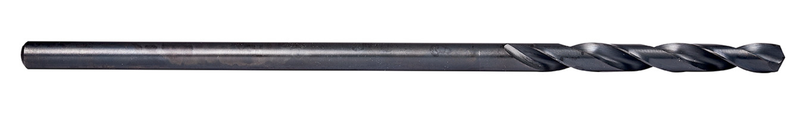

Foret long d'aviation à queue cylindrique, diamètre 0,5000" (1/2) avec une longueur totale de 12" et une longueur de coupe de 4,1/2" selon la norme NAS907 Type B avec pointe fendue robuste à 135°, en HSS avec finition recuite à la vapeur pour perçage 4xD sans débourrage dans l'acier, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)500-121/2
GradeTrempé à la vapeur
Product Number6001318
Product Family500-12
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)4.5"
Flute Length — mm (LCF)114.3 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number59032
File Type Download
500-121/2 — 3D Model STP Download

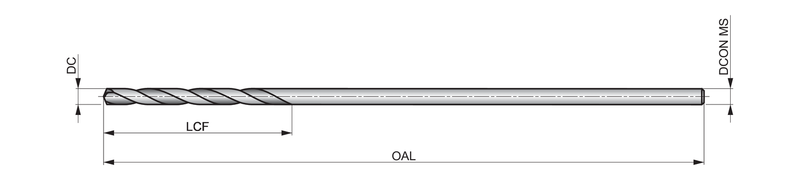

500-121/2 — Line Drawing PDF Download
